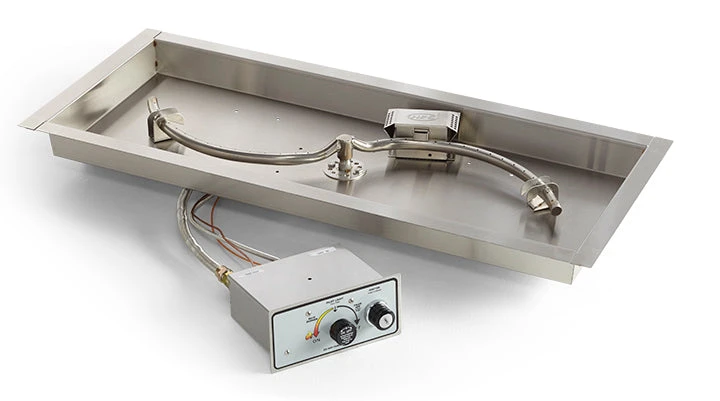

42″ X 14″ S Burner Manual Spark Ignition Kit

Discover How Our Flame-Sensing Battery Spark Works

1. Start-Up: This is done by simultaneously pressing valve control knob to start flow of pilot gas and pressing ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn valve control knob counterclockwise to light main burner.
2. Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.
3. Shut Down: To turn OFF the fire pit simply turn valve control knob clockwise- slightly depress knob to reach OFF position.

Features

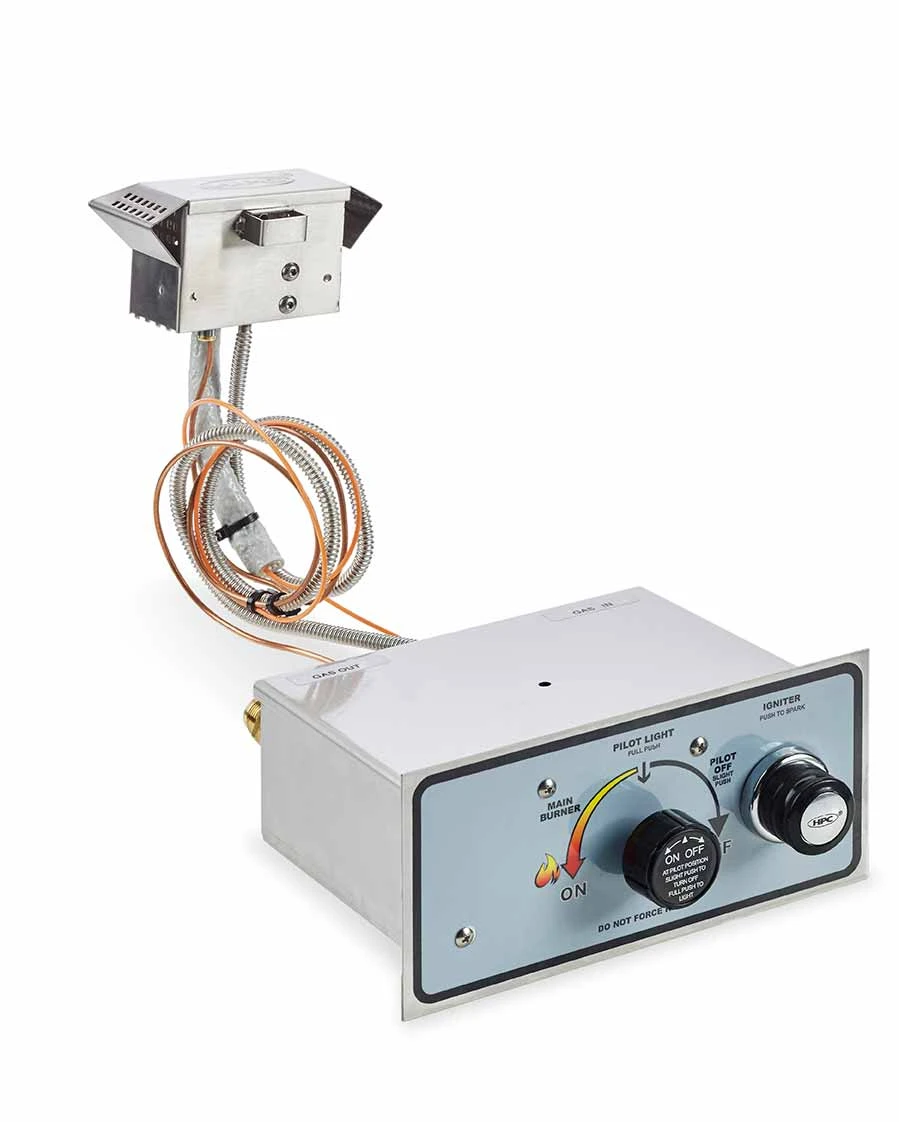

• Fully Assembled and ready to install. Control components are protected within valve box.
• Flex Line configuration provides versatile and simple installation.
• Start ignition with push button and valve control knob.
• The flame sensing system will turn off gas if flame is lost.
• Flame height is adjustable using valve control knob.
• Battery Operated System is the perfect solution for installs with no power.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
• Optional Install: Control Box Sleeve for mounting in pavers, metal and more.

Model # / Description

FPPK36X14-S-FLEX / 36×14” Pan, S-Fire Burner, 36” Flex Line, 75k Btu – *ST*
FPPK42X14-S-FLEX / 42×14” Pan, S-Fire Burner, 36” Flex Line, 90k Btu – *ST*
FPPK54X16-S-FLEX / 54×16” Pan, S-Fire Burner, 36” Flex Line, 140k Btu
